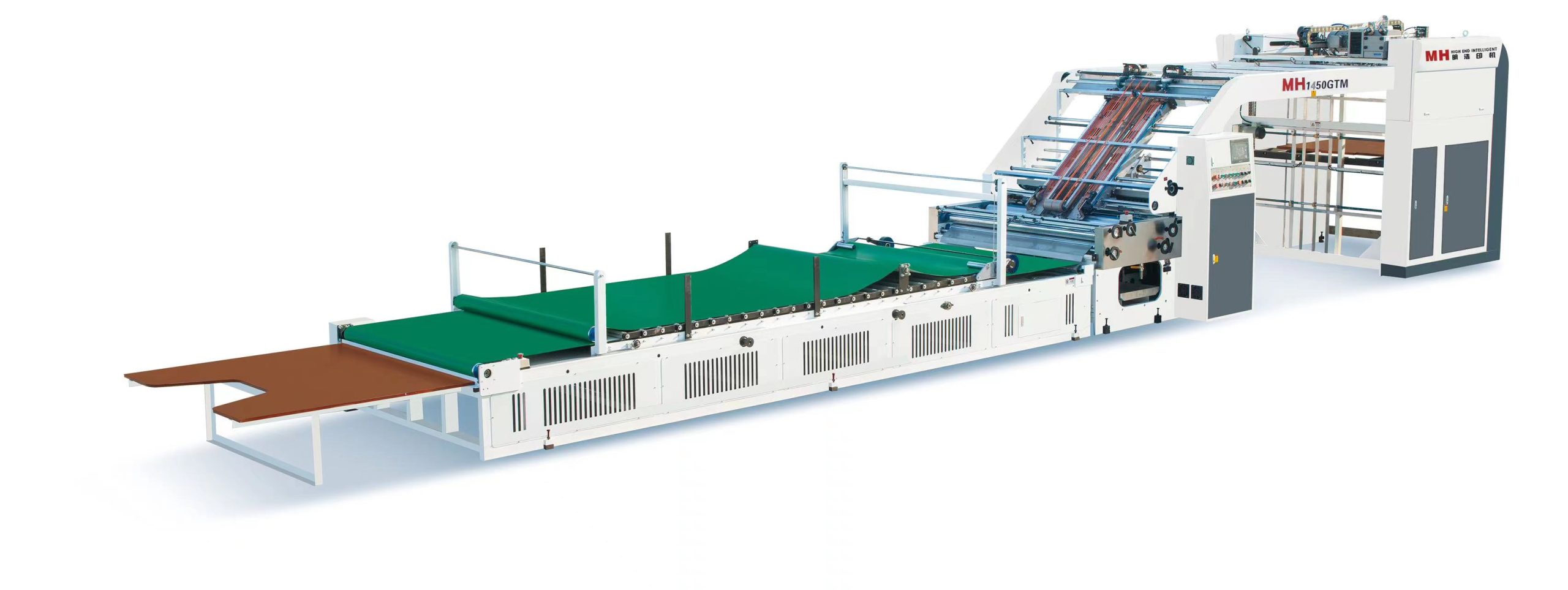

Automatic High Speed Laminating Machine
MH-1450, MH-1700 high speed servomotor laminating machine is for the lamination of cardboard to corrugated paper.
| Model | CY-1700 | CY-1450 |
| Max. Sheet Size | 1700x1450mm | 1450x1350mm |
| Min. Sheet Size | 380x380mm | 380x380mm |
| Thickness of Surface Paper | 180-400gsm | 180-400gsm |
| Thickness of Bottom Paper | 0.5-10mm | 0.5-10mm |
| Speed | 150m/min | 150m/min |
| Laminating Precision | ±1mm | ±1mm |
| Dimension | 12500x2300x2400 | 12500x2450x2400 |
| Total Power | 25KW | 25KW |
| Weight | 6.5T | 6T |
